Special purpose NC rotary table discontinuous
SDH-NC8/S/3H/

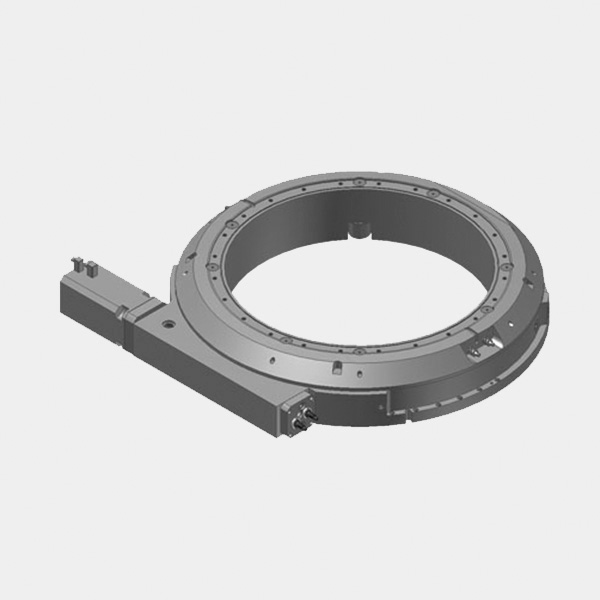

Special purpose NC rotary table discontinuous serration ring design, non-lift type, Z=360
– worm gear i=180
– safe transport load: 2,500 kg

Special purpose NC rotary table discontinuous

serration ring design,
non-lift type,
Z=360

Description

– worm gear i=180
– safe transport load: 2,500 kg
– table plate dm 1,175mm, with through hole  Ø 860 mm in the centre, with Ø 960H7 centering  collar
– horizontal use
– max. table plate speed: 25 rpm(at  nmotor=4,500 rpm) and i=180

– safe axial load: 54,000 N
– safe radial load: 54,000 N

feature:
– serration ring table,
– monitoring of the following functions: Hirth serration system “unlocked” and Hirth serration system “locked”
