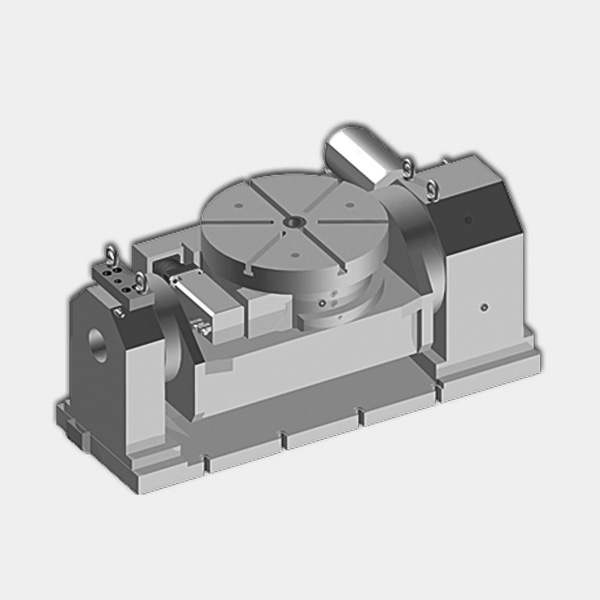

NC-Rotary and Swivel unit SKS-NC5
– duplex worm drive, i=120
– safe transport load 700 kg
– table plate Ø 630 mm

NC-Rotary and Swivel unit
SKS-NC5

– duplex worm drive, i=120
– safe transport load 700 kg
– table plate Ø 630 mm

Description

- duplex worm dirve, i=120
- safe transport load: 700 kg
- table plate: Ø 630 mm ( T-groove 1x22H7, 6x22H12)
- maximum table speed: 6.25 RPM at motot n=3,000 RPM
- safe axial load: 35,000 N
- safe radial load: 35,000 N

NC-Swivel axis SKV-NC5
- duplex worm drive, i=90
- maximum table speed 4.7 RPM at motor n=3,000 RPM

Counter bearing SKH-NC5
- with preloaded Aixial-Radial bearing
- with hydr. table locking p=63 bars
- safe tangential stress: 4,200 Nm
