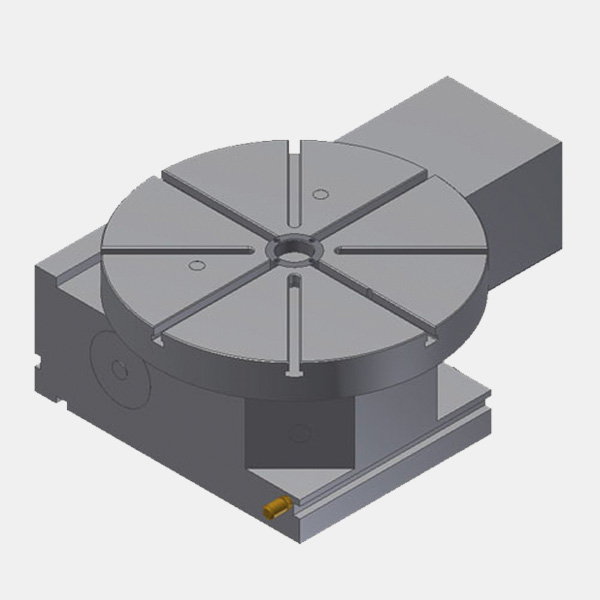

Description
– worm drive, i=90
– safe transport load vertical 300 kg, horizontal 900 kg, with counter bearing 600 kg
– table plate Ø 500 mm with t-grooves star-shaped arranged
– vertical/horizontal use
– construction desgin: continuous NC rotary table with direct drive and with hydraulic clamping
– max. speed table plate: 33 rpm at motor n=3,000 rpm
– safe axial load (incl. transport load): 8,500 N
– safe radial load: 8,500 N
