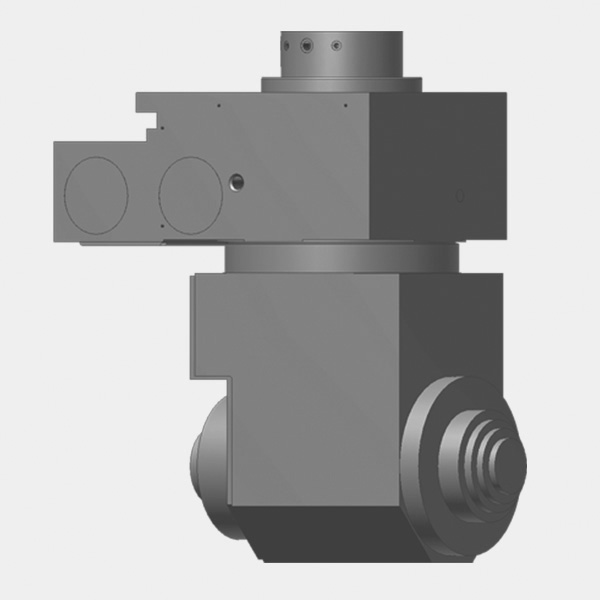

Single-axis NC milling head prepared for motor spindle
KF/M2/90-NC5

Single-axis NC milling head prepared for motor spindle
KF/M2/90-NC5

P=68 kW,
n=10,000 RPM

Description

C-axis (NC-clevis-swivel axis):
– working range: ± 90°

Accuracy:
– dividing accuracy: in angular seconds ± 6
– repeatability: in angular seconds ± 1

Load data:
– safe mass moment of inertia issuing from transportation load: 40 kgm²
– safe tangential stress (at 63 bar lock pressure): 4,200 Nm
– safe tilting moment: 6,300 Nm
– safe torque to be transmitted by wormgear: 2,500 Nm
