Description

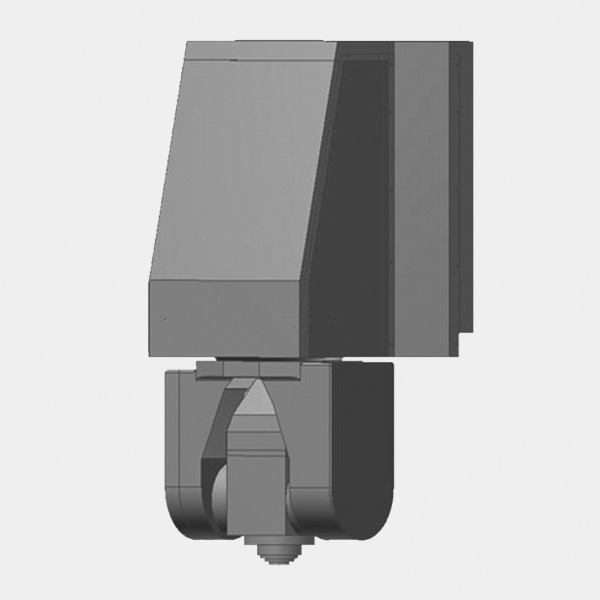

A-axis (NC-clevis-swivel axis):
– working range: ± 110°
Accuracy:
– dividing accuracy: in angular seconds ± 5
– repeatability: in angular seconds ± 1
Load data:
– safe mass moment of inertia issuing from
transportation load: 20 kgm²
– safe tangential stress (at 63 bar lock pressure):
2,400 Nm
– safe tilting moment: 2,000 Nm
– safe torque to be transmitted by worm
gear: 650 Nm
