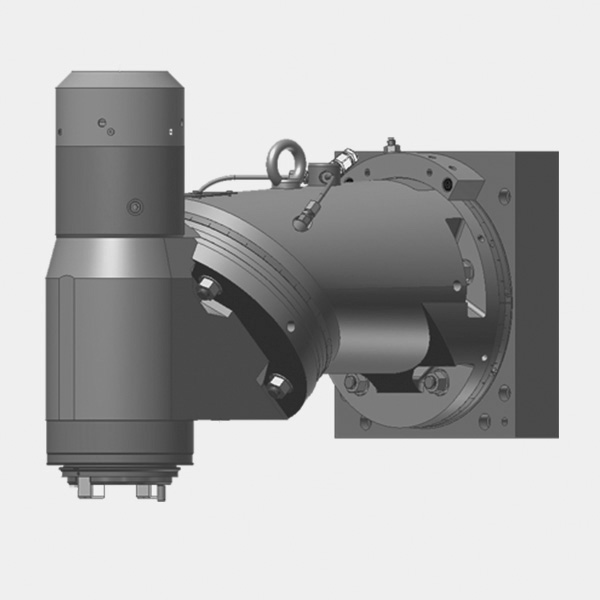

Two-axis universal milling head/manual
KFU-2/45
P=15 kW, n=3,150 RPM, M=600 Nm, SK 50

Two-axis universal milling head/manual
KFU-2/45

P=15 kW,
n=3,150 RPM,
M=600 Nm,
SK 50

Description

Construction principle:
Two-axis milling head with automatic tool clamping

Swivle axis:
- Position to the bolting surface: 45º
- Swivel range: 360º
- Reading accuracy: 2 angular minutes

Load data:
- max. speed: 3,000 RPM (constant)
- max torque: 1,000 Nm (constant) up to n=294 RPM
- max power capable of being transmitted: 37 kW (constant)
at 294 RPM



Accuracy:
- True running of the inner taper of he milling spindle in plane
A and plane B as per DIN 8601
measuring point 1 l=15 mm 0.010 mm
measuring point 2 l=300 mm 0.020 mm

- Parallelism of the milling spindle rotation axis to the milling head's screw-down surface during swivelling through axis (A-A) as per
DIN 8601 0.020/300 mm/mm

- Rectangularity of milling spindle axis to scew-down surface (45º planes) 0.020/300 mm/mm
