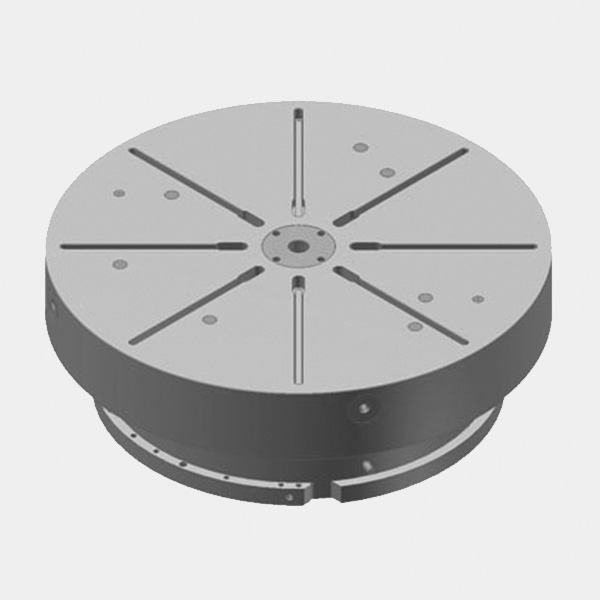

Rotary Dividing Table with direct drive SKH-NC9/T
– table top: dia. 1,600 mm
– max. table top speed: 250 min-1
– table load “turn”: 3,000 kg
– table load “mill”: 6,000 kg

Description

– Construction: continuous NC table with direct drive
– construction height: 420 mm
– drive: water-cooled torque motor
– max. table top speed: 250 RPM
– table top: dia. 1,600 mm
– table load “turn”: 3,000 kg
– table load “mill”: 6,000 kg
– permanent torque available at the rotary table (with
water-cooling):
approx. 2,500 Nm by n_table=100 RPM
aproxx. 1,700 Nm by n_table=150 RPM
