Description
– duplex gearing, i=120
– safe transport load: 18,000 kg
– table plate 2,500 mm x 2,000 mm with T-grooves- duplex gearing, i=120
– horizontal use

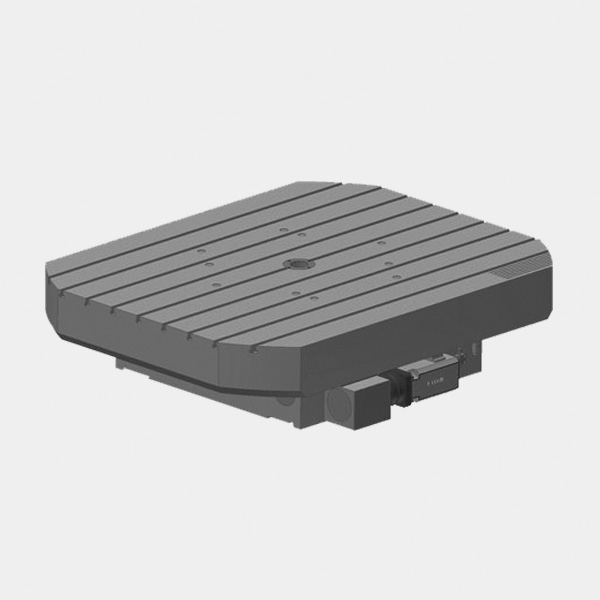

– construction design: continuous NC rotary table with direct drive and with hydraulic clamping
– max. speed table plate: 2.5 rpm at motor n=3,000 rpm
– safe axial load (incl. transport load): 300,000 N
– safe radial load: 300,000 N
