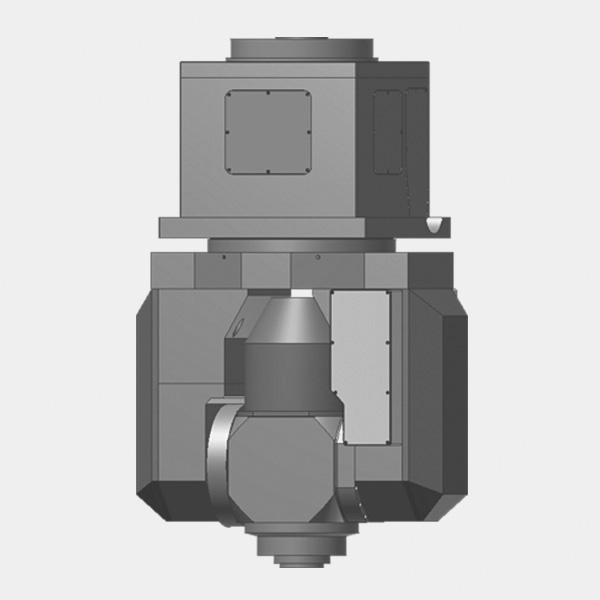

Two-axis NC clevis milling head prepared for motor spindle
KFU/M1/90-NC1
P=12.5 kW, n=12,000 RPM, M=50 Nm

Two-axis NC clevis milling head prepared for motor spindle
KFU/M1/90-NC1

P=12.5 kW,
n=12,000 RPM,
M=50 Nm



Description

C-Axis / Axis 1 (upper NC-swivelling axis)
- working range: ± 180º

Load data:
- max. torque: 1,250 Nm
- safe clamping torque: 3,000 Nm
- max. speed: 12.5 RPM

A-Axis / Axis 2 (NC clevis swivelling axis)
- working range: -90° up to +120°

Load data:
- max. torque: 240 Nm
- safe clamping torque: 700 Nm
- max. speed: 27.7 RPM
