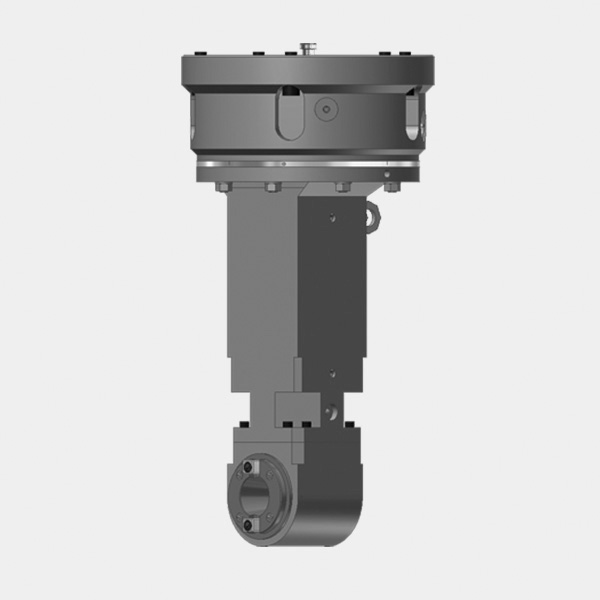

Manual single-axis milling head
KF-2/90
P=15 kW, n=1,500 RPM, M=500 Nm

manual single-axis milling head
KF-2/90

P=15 kW,
n=1,500 RPM,
M=500 Nm



Description

Construction principle:
– Positioning and clamping: manual
– SK 50 without automatic tool clamping
– with external coolant supply
– Lubrication: grease lubrication
– Transmission gear: 1.68 : 1
– Manufactured length (up to spindle centre): 750 mm
– Concentric running of the internal cone:
L=15 mm  : 0.010 mm
L=300 mm : 0.020 mm
– Centre offset : 0.020 mm
